MT200 Basic-Pro Verticutter

For smaller and deeper cuts

When the MT200 Flex-Verticutter heads are mounted behind the tractor, it becomes a verticutter. All heads are mechanically driven and can follow the undulations individually. Curves can be made easily. The machine can be used for a shallow cut (verticut) or a deeper cut (scarifying).

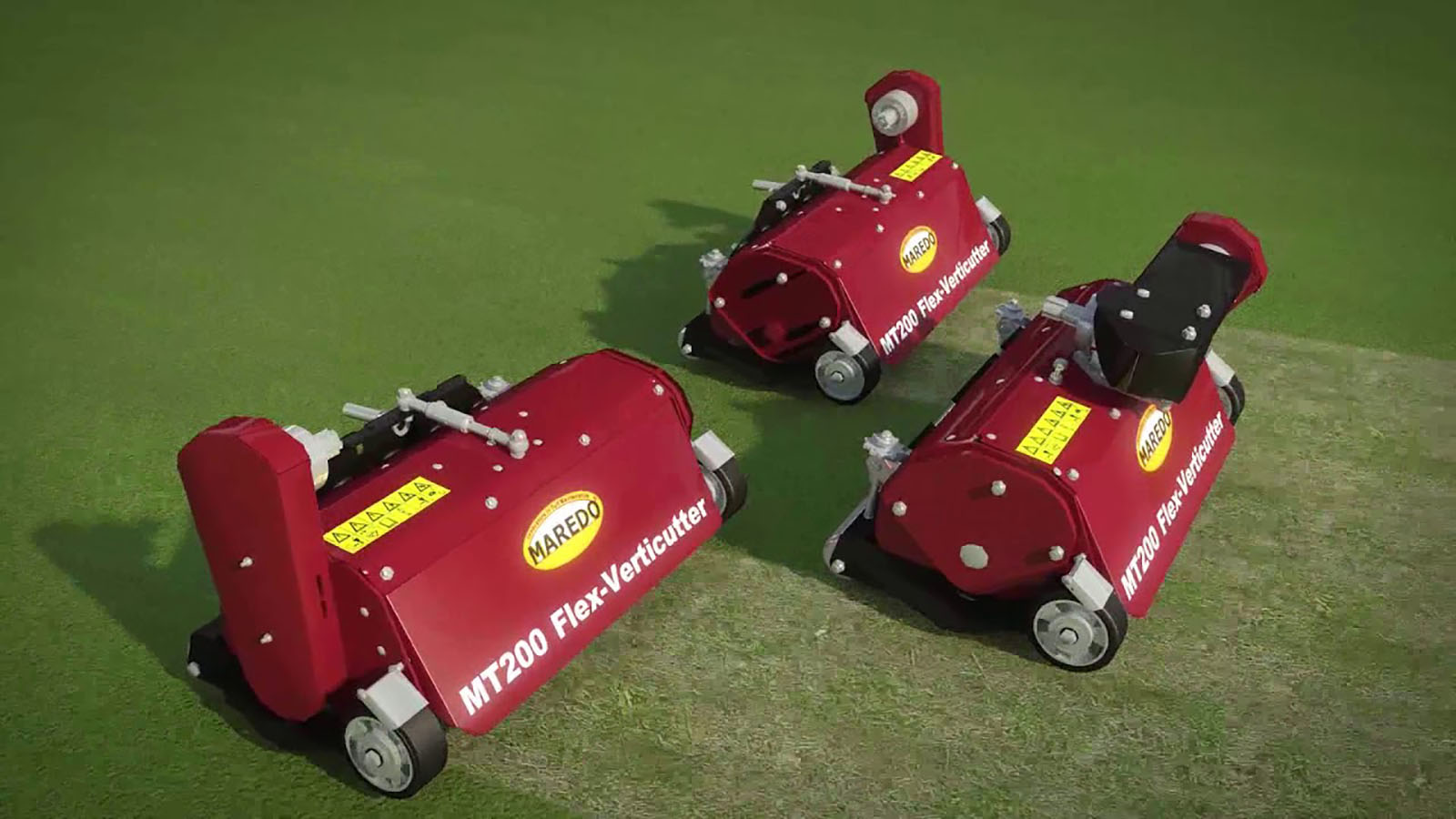

• The MT200 Flex-Verticutter head for Behind the Tractor is a heavy duty head with the following specifications:
• Easy depth adjustment by hand (no tools required).
• At the front side a support roller, at the rear support wheels.
• Standard we have mounted carbide tipped 2 mm thick cutting blades.
• The standard disk spacing is 40 mm.
• The blades counter rotate against driving direction. This works more effective as the material is not dragged down into the slit but get’s lifted out by the blades.
• The blade rotation direction can be changed by turning over the gearboxes.
• The heads are driven by maintenance free drive chains positioned on the side of each head.
• The MT200 is a maintenance friendly machine. Maintenance includes; a once a year oil change of the gearboxes, greasing all ten lubrication points and cleaning with compressed air after each use.
• Working depth 0-25 mm 0- 1”.
• The weight is 55 kg = 110 lbs per head.
